Coax and Connectors
SMA Connectors Spinner DIN 7/16 Connectors Cellflex LCF 12-50 J• SMA

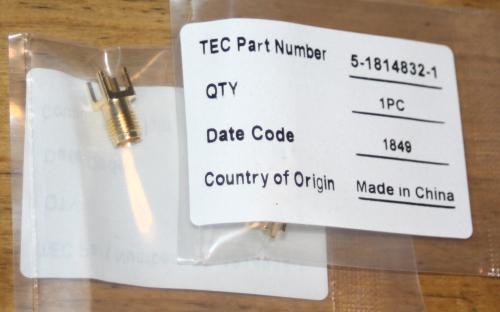

SMA Straight PCB SocketTE Part. No.: 5-1814832-1
Specs: 50 ohms, pin + outer = gold plated, up to 3 GHz, insulation PTFE, flange pins for 1.7 mm holes, dist. 5.08 mm.

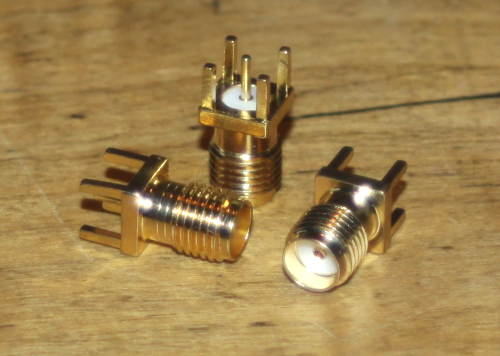

SMA Straight PCB Socket
Own brand.
Specs: 50 ohms, pin + outer = gold plated, up to 6 GHz, insulation PTFE, flange pins for 1.7 mm holes, dist. 5.08 mm.
| Art. # | Description | Stock | Price |
| SMA straight Socket, PCB, TE | SMA straight Socket, PCB, TE-Electronics, NOS in bag | € 2,00 |
| SMA straight Socket, PCB, OB | SMA straight Socket, PCB, own brand | € 2,00 |
Prices incl. legal VAT. plus shipping costs
• Spinner DIN 7/16 Connectors

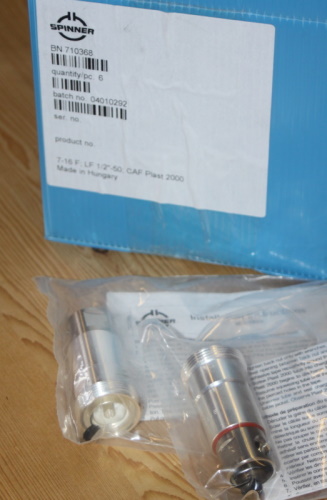

DIN 7/16 Cable Bushing for Cellflex LCF 12-50 J,Spinner Part. No.: BN 710368

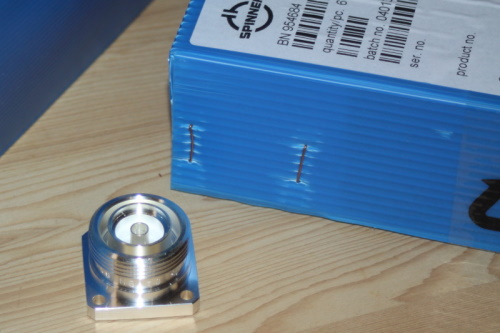

Spinner Part. No.: BN 954684
| Art. # | Description | Stock | Price |
| Spinner 7/16 BU 1/2 | Spinner cable bushing 7/16 for LCF 12-50 J | € 16,50 |
| Spinner 7/16 FL.BU | Spinner flange bushing 7/16, M3 x 5 | € 11,50 |
Prices incl. legal VAT. plus shipping costs

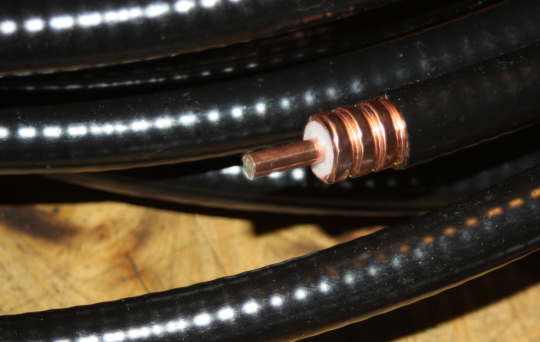

• RFS Cellflex LCF 12-50 J
1/2 low loss flexible coax with foam dielectric.Corrugated shield from massive copper, core = copper-coated aluminium
| Core ⌀ | 4.8 mm | |
| Shield ⌀ | 13.8 mm | |
| Jacket ⌀ | 16.2 mm | |
| Impedance | 50+/-1 Ω | |
| Velocity Factor | 0.88 | |
| Loss / Power Rating (30 MHz) | 1.17 dB/100 m, 7.27 kW | |
| Loss / Power Rating (50 MHz) | 1.51 dB/100 m, 5.6 kW | |
| Loss / Power Rating (144 MHz) | 2.61 dB/100 m, 3.23 kW | |
| Loss / Power Rating (432 MHz) | 4.61 dB/100 m; 1.85 kW | |
| Loss / Power Rating (1296 MHz) | 8.29 dB/100 m, 1.02 kW |
Stock?
PLEASE ASK.
I have short pieces from 0.5 m (great for 1/4 wl on 144 MHz) up to 17.5 m.
This coax is unused leftover from configuring bespoke patch cables or trimmed lengths.
Currently available amoung very short endes are: 0.95 m
1.8 m
5.0 m
17.5 m
| Art. # | Description | Stock | Price |
| LCF 12-50 J | RFS Cellflex LCF 12-50 J | € 4,75 per m |
Prices incl. legal VAT. plus shipping costs
