Dipole Parts for VHF / UHF



Dipoles and alike


Dipoles

Blade Dipole for the 70 cm Band



• Blade Dipole for the 70 cm Band












Laser cut dipole arms for building a DG7YBN GTV 70-19m, GTV 70-25m or GTV 70-30m.
Material is aluminum t = 2 mm.

Fits 1:1 for use on 25 x 25 mm and 1 x 1 inch booms.


Art. #   Description     Stock   Price

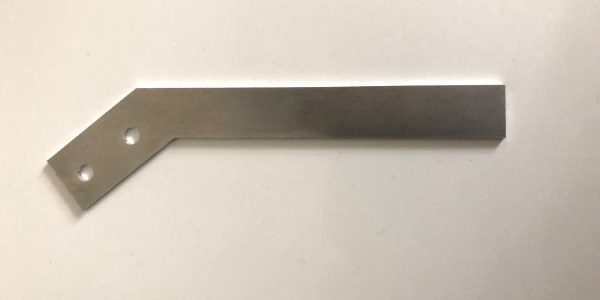

Blade GTV 70-19/30   Pair of sheet metal Blade Dipole arms suiting a GTV 70-19 to 30     € 5.00


Application Samples

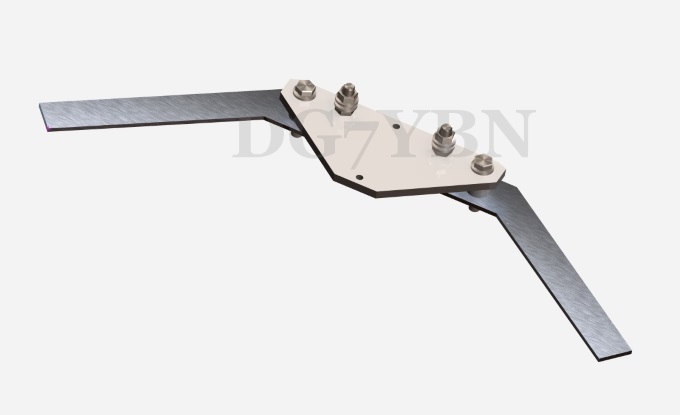

  Pair of Blade Dipole arms mounted


A bracket for various booms can be produced with a 3D printer.
The .stl files of DG7YBN drawn brackets for 20 x 20, 25 x 25 mm and 1 x 1 inch are for free download see here: http://dg7ybn.de/Bent_DE/Bent_DE.htm#3D_printing_bracket

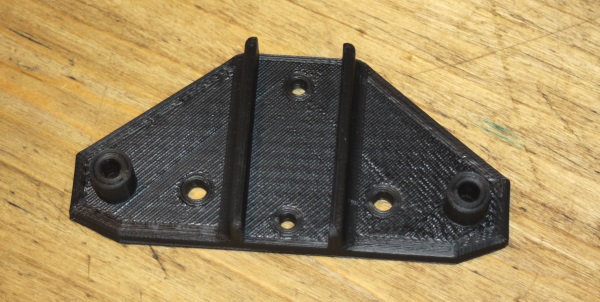

  Bracket for 3D self printing


For 20 x 20 mm boom : screws M4 x 25 mm.
For 25 x 25 mm boom and 1 x 1 inch : screws M4 x 30 mm

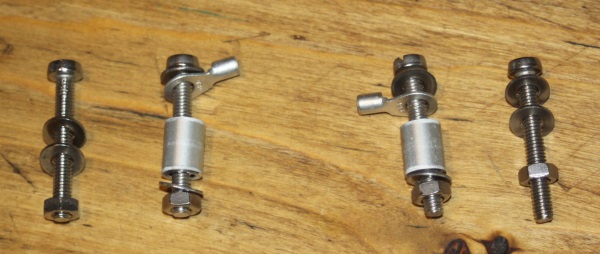

  Screws and spacers




Prices incl. 19% VAT. plus shipping costs
