Insulators

Through Boom, Elements 4.0 mm
On Boom 25 x 25 mm high, Elements 6 .. 12 mm
On Boom 20 x 20 mm Standard, Elements 6 .. 12 mm
On Boom 25 x 25 mm Standard, Elements 6 .. 12 mm
Reinforcing Plate for Elements Tubes 8 mm




• Through Boom Insulator 6 x 4.0 mm

Fits element diameter 4.0 mm, suits element mounting electrically insulated through the boom

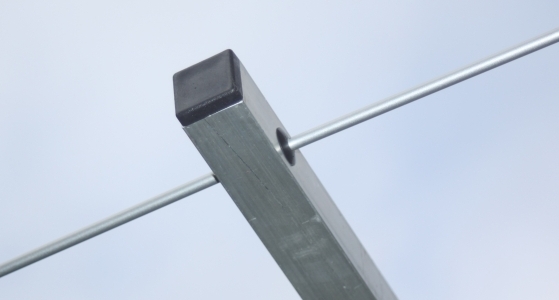

Going back on what we know as the DJ9BV Nylon Rivet style of mounting elements which he learned from DL6WU, who had it from DJ6NS, this method of mounting elements this method of mounintg elements is as well known as proven.

Mounting thin elements this way results in very effective lightweight Yagi-Uda antennas for the UHF bands. With a ratio of weight and wind load to antenna gain and -G/T that is hard to beat.

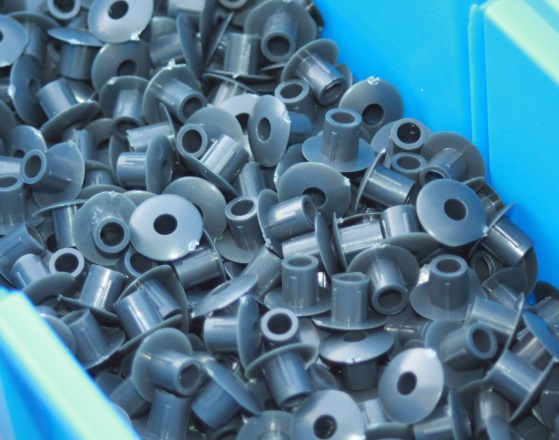

The Nylon Rivets are difficult to purchase and any furniture plugs must be drilled through one by one. But this methode offers unique RF properties. Hence I decided to have an injection mold being made.










New batch: slightly different plastic, grey color





This insulator is made from a UV stabilised plastic.
Elements have tight fit, hence a tolerance in element diameter is not tolerable.

Be sure your elements have a 4.00 mm fit. Boom bore holes shall be of diameter 6.0 mm sharp. I do not wish to disappoint you when these insulators cannot be pushed over or have no grip on non suitable elements!

For mounting ínstructions & hints see here dg7ybn.de

A push rod of approximatly 8x1 mm is needed to hammer these into place and boom.

Please Note: New batch, slightly different plastic, a little softer

Art. #   Description     Stock   Price
Insulator 6x4 mm   Through Boom Insulator 6 x 4.0 mm     € 0.10


Prices incl. 19% VAT. plus shipping costs



References please?

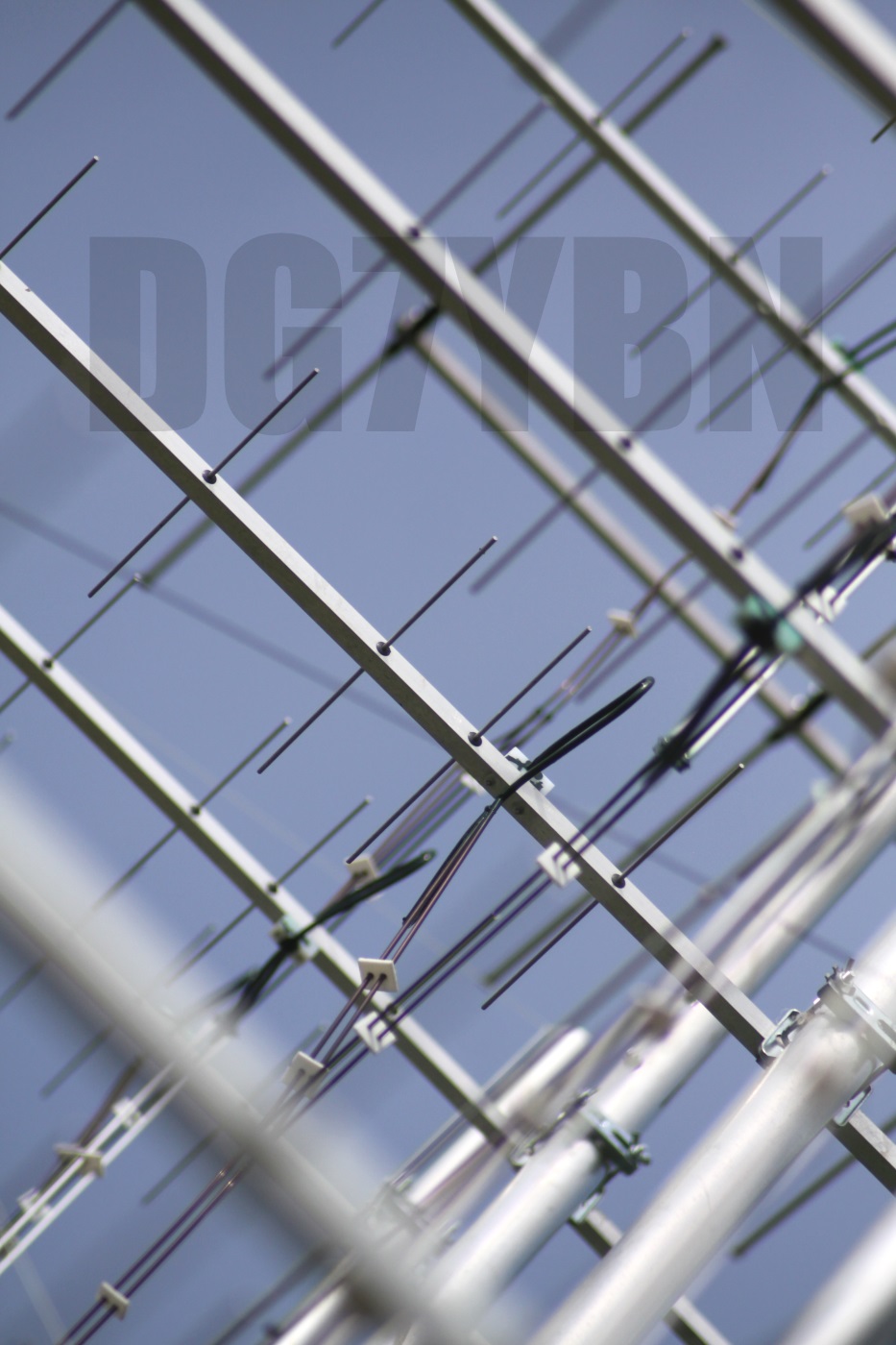

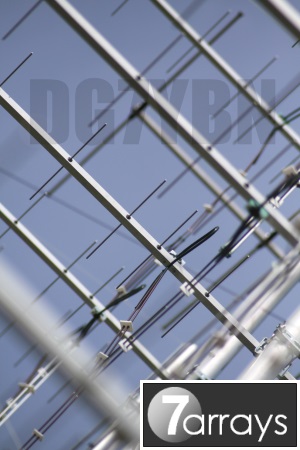

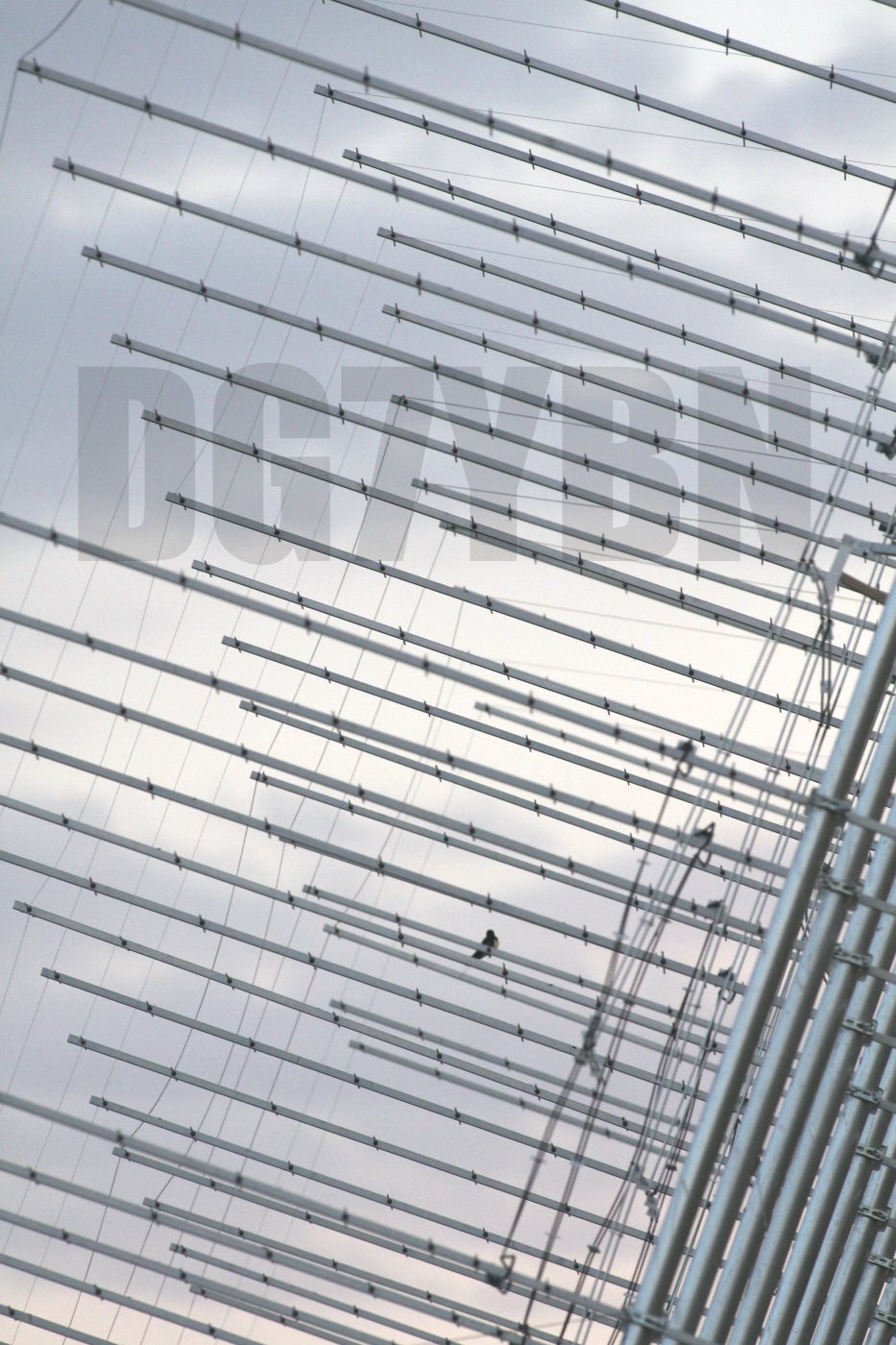

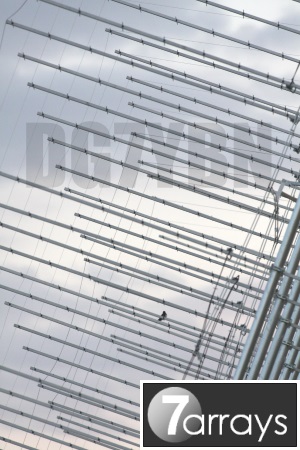

Array of 128 x GTV 70-11w in progress at DL7APV. Which consumed 2560 pcs of 4x6 mm insulators by 7arrays

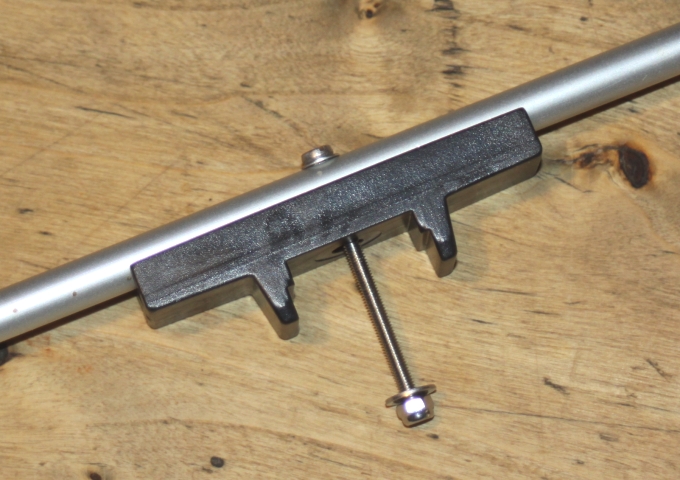

• High Insulator for On Boom 25 x 25 mm

Fits element diameter 6 mm ... 12 mm, for mounting elements on a 25 x 25 mm boom.
Just like the 4 x 6 mm plugs these insulators are being made to my specification and drawings.

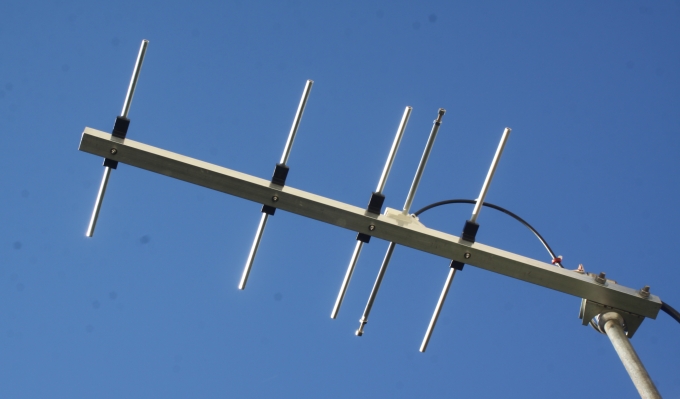

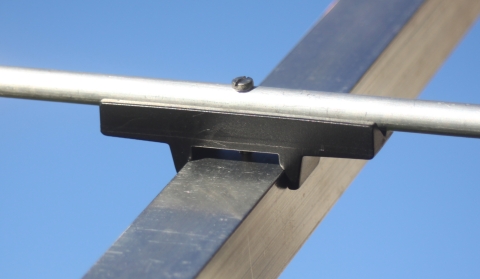

YBN 70-5m, 8 mm elements on 25 x 25 mm boom using these insulators (Boom Correction evaluation test Yagi)





Use Boom Correction as follows:

144 MHz = 3.7 mm (elem. Ø 8 ... 10 mm)
423 MHz = 7.1 mm (elem. Ø 8 ... 10 mm)


Art. #   Description     Stock   Price
Insulator High on 25x25mm   On Boom Insulator, Elem. 6-12 mm,
Square Boom 25 x 25 mm
    € 0.75



Prices incl. 19% VAT. plus shipping costs




Products to complete mounting an element up to Ø 10 mm on a boom 25 x 25 mm

Art. #   Description
Screw M3x50 SS   DIN 933 / ISO 4017 Screw M3 x 50
Stainless SS316


Washer M3 SS large   DIN 9021 / ISO 7093 Washer M3 large
Stainless SS316


Washer M3 SS   DIN 125B / ISO 7090 Washer M3 Standard
Stainless SS316



Nut M3 SS self locking   DIN 985 Nut M3, self locking
Stainless SS316



See Screws page

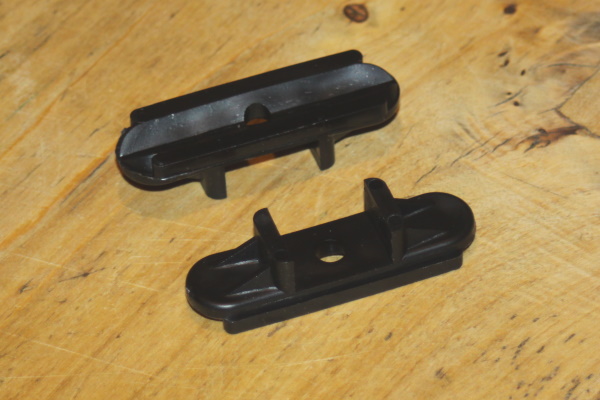

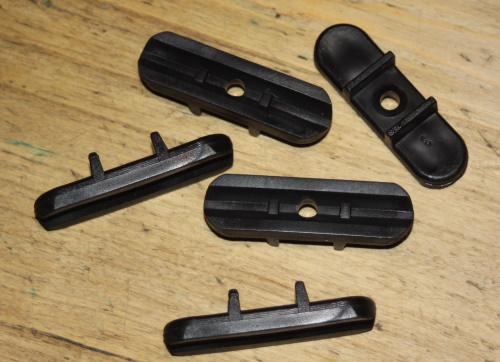

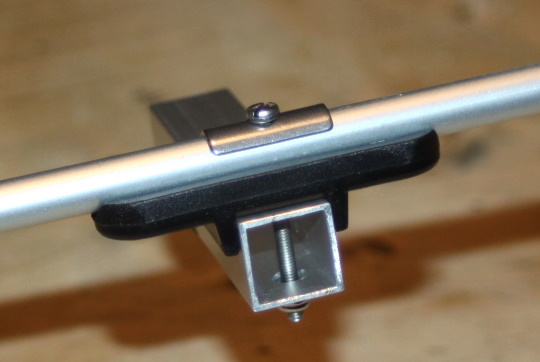

• Insulator for On Boom 20 x 20 mm Standard

Fits element diameter 6 mm ... 12 mm, for mounting elements on a 20 x 20 mm boom
This is the well known and measured type of insulator sold by various companies.









For application details see www.dg7ybn.de, here

• Fastening screw is M3 x 35 mm for 8 mm elements
• Fastening screw is M3 x 40 mm for 8 mm elements incl. reinforcing plate
• and 10 mm elements with or without reinforcing plate

Use Boom Correction as follows:

  70 MHz = 2.3 mm (approx.)
144 MHz = 3.9 mm (elem. Ø 8 ... 10 mm)
403 MHz = 7.1 mm (elem. Ø 6 ... 10 mm)
432 MHz = 7.5 mm (elem. Ø 6 ... 10 mm)

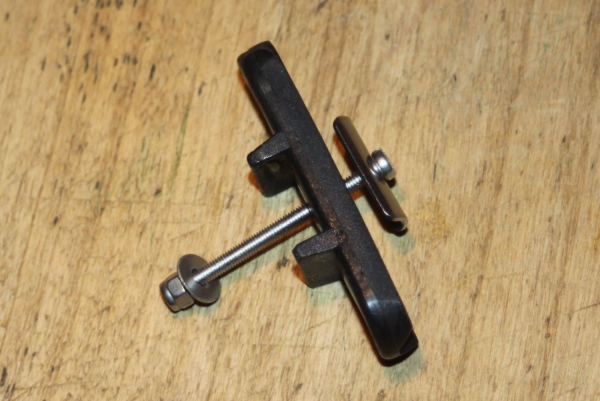

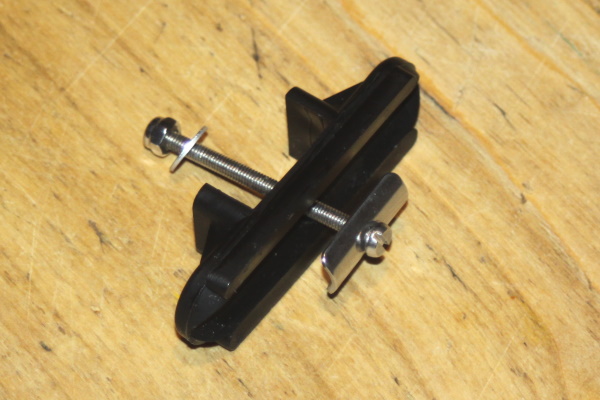

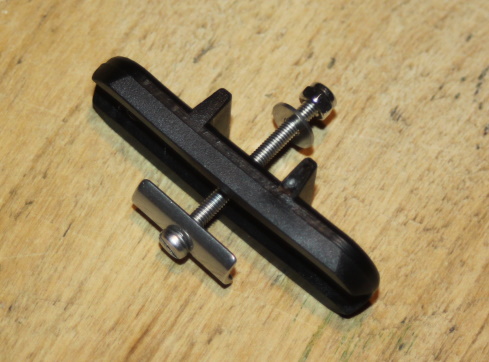

Complete Set A for 8 mm elements

• Insulator
• Reinforcing Plate
• Screw M3 x 40
• Large Washer
• Selflocking Nut, all Stainless Steel






Art. #   Description     Stock   Price
Insulator on 20x20mm Std.   On Boom Insulator, Elem. 6-12 mm, Standard
Square Boom 20 x 20 mm
    € 0.75

Set A Insulator on 20x20mm Std.   Insulator 20 x 20 mm, Standard, Reinforcing Plate for 8mm Elem., Screw M3 x 40, Large Washer, Selflocking Nut     € 1.70



Prices incl. 19% VAT. plus shipping costs

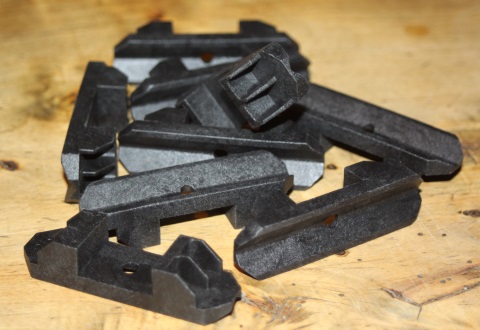

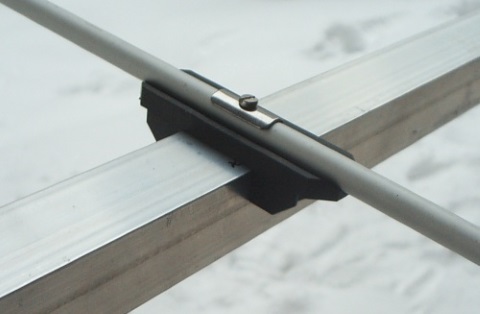

• Insulator for On Boom 25 x 25 mm Standard

Fits element diameter 6 mm ... 12 mm, for mounting elements on a 25 x 25 mm boom
This is the well known and measured type of insulator sold by various companies.









For application details see www.dg7ybn.de, here

• Fastening screw is M3 x 40 mm for   8 mm elements (with or without reinforcing plate)
• Fastening screw is M3 x 45 mm for 10 mm elements (with or without reinforcing plate)

Use Boom Correction as follows:

144 MHz =   7.6 mm (elem. Ø 8 ... 10 mm)
403 MHz = 10.4 mm (elem. Ø 6 ... 10 mm)
432 MHz = 11.0 mm (elem. Ø 6 ... 10 mm)


Complete Set A for 8 mm elements

• Insulator
• Reinforcing Plate
• Screw M3 x 40
• Large Washer
• Selflocking Nut, all Stainless Steel






Art. #   Description     Stock   Price
Insulator on 25x25mm Std.   On Boom Insulator, Elem. 6-12 mm, Standard
Square Boom 25 x 25 mm
    € 0.95

Set A Insulator on 25x25mm Std.   Insulator 25 x 25 mm Standard, Reinforcing Plate for 8mm Elem., Screw M3 x 40, Large Washer, Selflocking Nut     € 1.90



Prices incl. 19% VAT. plus shipping costs

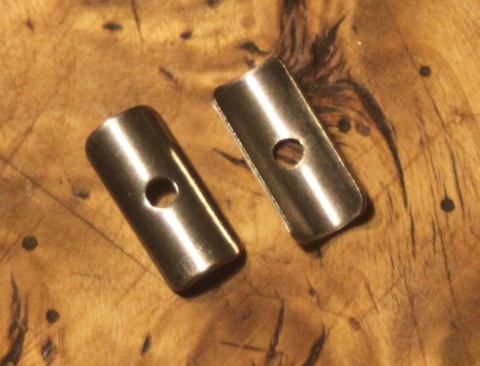

• Reinforcing Plate for Element Tubes 8 mm

Fits element Ø 8 mm. Reinforces the element just were it needs to.

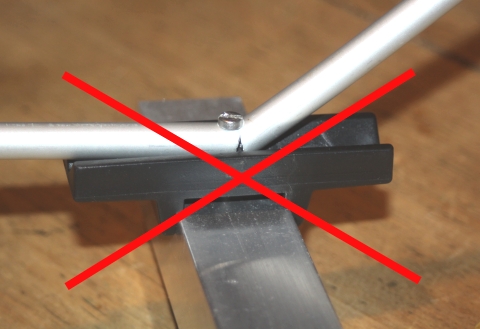

Which is at the fastening point were there is a 3 mm bore through it while all the stress comes down to focus on that very point. Elements made from tube material break just there in case of any mishappening.















Frequency Influence?

  50 MHz = not measurable
144 MHz = no more than 50 kHz up
423 MHz = not tested yet


Art. #   Description     Stock   Price
Reinforcing Plate 8mm Elem   Reinforcing Plate for Ø8 mm Elements, 20 x 9 x 0.8 mm Stainless Steel     € 0.40



Prices incl. 19% VAT. plus shipping costs
