Fastening Materials

These parts are of industrial quality retailed from a German industry supplier

Cable Glands
Heat Shrink Tube, Adhesive lined
Cable Straps
Grommets

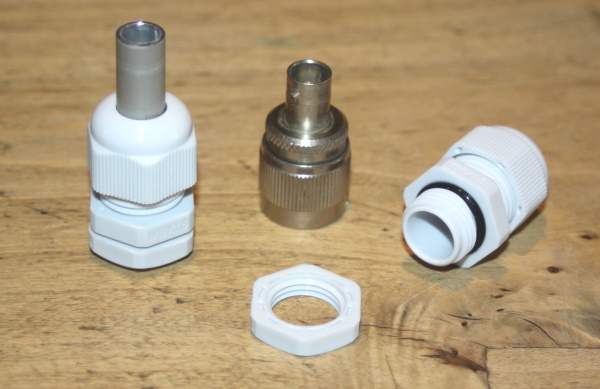

• Cable Gland M16 x 1.5 incl. Counternut





On left: with aluminium tube 10 x 1 mm suitable for VHF/UHF dipoles

• Properties

Material   polyamide (PA)
Colour   grey
Protection Class   IP 67 (sealing ring to box side)
Temp.-range   -20ºC to max. +80ºC
Fits diameter   Ø 5 - 10 mm

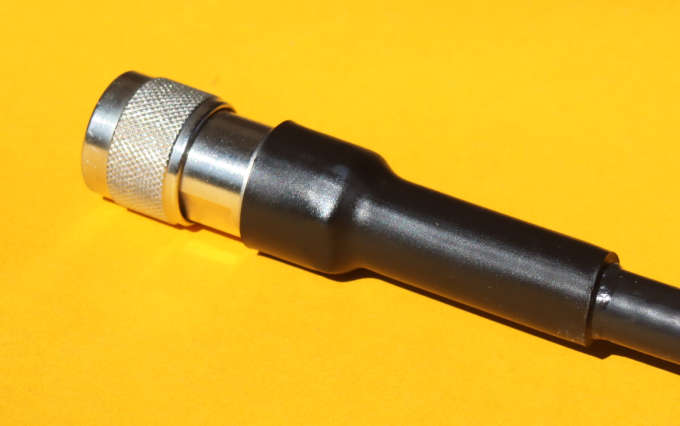

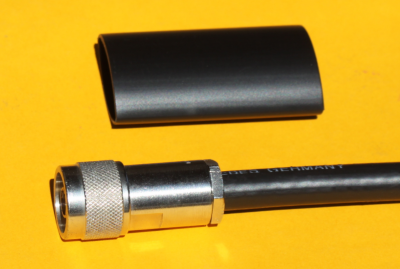

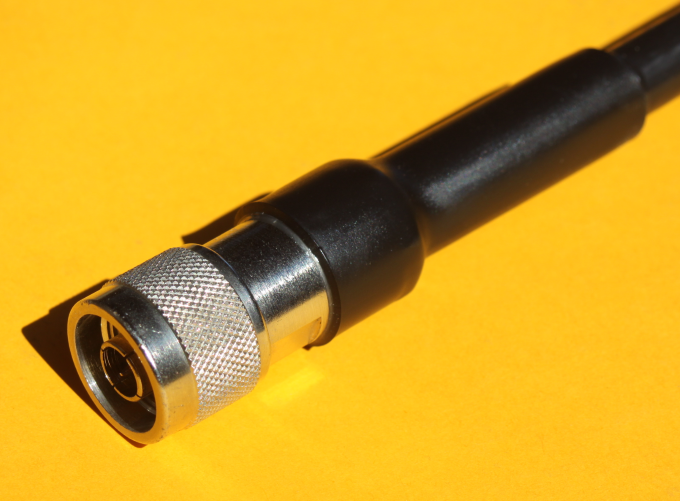

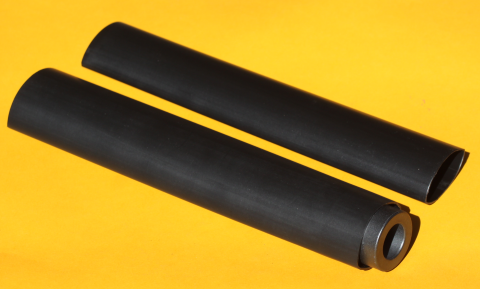

Heat Shrink Tube with Adhesive





• Heat Shrink Tube with Adhesive, 22 > min. 8.0 mm











Medium heat shrinkable, medium wall thickness, polyolefin adhesive lined tubing
for use in application acc ESI-09-11, VDE 0278-95.

• Properties

Material   polyolefin cross-linked
Colour   black
Ø at delivery   22 mm
Ø min.   8.0 mm
Shrink ratio   3 : 1
Wall thickn.   2 mm after shrink to min. Ø
Shrink temp.   > +120ºC
Temp.-range   -55ºC to max. +110ºC




• Heat Shrink Tube with Adhesive, 28 > min. 10 mm

Medium heat shrinkable, medium wall thickness, polyolefin adhesive lined tubing
for use in application acc ESI-09-11, VDE 0278-95.

• Properties

Material   polyolefin cross-linked
Colour   black
Ø at delivery   28 mm
Ø min.   10 mm
Shrink ratio   3 : 1
Wall thickn.   2 mm after shrink to min. Ø
Shrink temp.   > +120ºC
Temp.-range   -55ºC to max. +110ºC

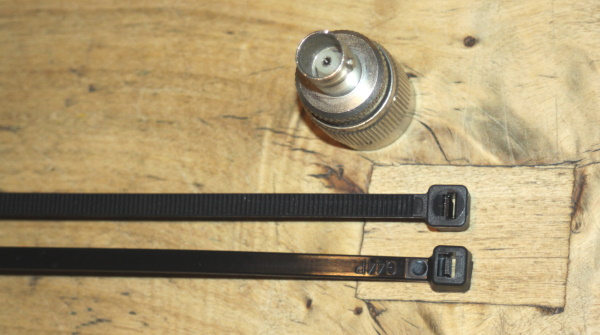

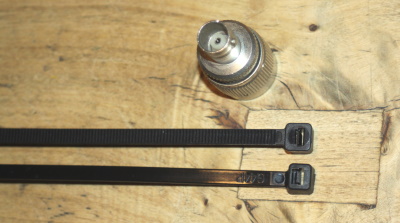

• Cable Strap 200 x 4.8 mm, UV Resistant

UV resitant acc. UL 62275, tensile strength tested after 1000 h UV test.

• Properties

Material   polyamide (PA) 6.6
Colour   black
Tensile Stength   222 N or 48 lbf
Temp.-range   -40ºC to +80ºC




• Cable Strap 360 x 4.8 mm, UV Resistant

UV resitant acc. UL 62275, tensile strength tested after 1000 h UV test.

• Properties

Material   polyamide (PA) 6.6
Colour   black
Tensile Stength   222 N or 48 lbf
Temp.-range   -40ºC to +80ºC

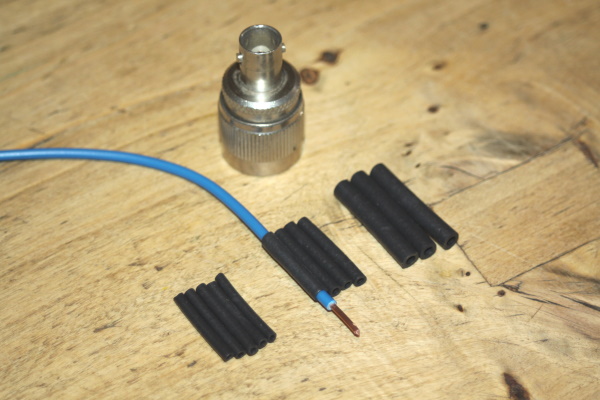

• Grommet 1.25 - 2.0 mm

Chloroprene insulation grommet,
very flexible, reaction to fire behaviour acc. UL94 V-0 (self extinction of flame within 10 s).

• Properties

wire Ø   1.25 - 2.0 mm
Material   chloroprene
Colour   black
Durabiltiy   oil, petrol, ozone
Temp.-range   -30ºC to +90ºC




• Grommet 1.75 - 3.5 mm

Chloroprene insulation grommet,
very flexible, reaction to fire behaviour acc. UL94 V-0 (self extinction of flame within 10 s).

• Properties

wire Ø   1.75 - 3.5 mm
Material   chloroprene
Colour   black
Durabiltiy   oil, petrol, ozone
Temp.-range   -30ºC to +90ºC




• Grommet 2.5 - 5.5 mm

Chloroprene insulation grommet,
very flexible, reaction to fire behaviour acc. UL94 V-0 (self extinction of flame within 10 s).

• Properties

wire Ø   2.5 - 5.5 mm
Material   chloroprene
Colour   black
Durabiltiy   oil, petrol, ozone
Temp.-range   -30ºC to +90ºC







Art. #   Description     Stock   Price
Cable Gland M16   Cable Gland M16 x 1.5 incl. Counternut     € 0.75
Heat Shrink Tube 22 mm   200 mm of Heat Shrink Tube with Adhesive, 22 > min. 8 mm     € 4.35
Heat Shrink Tube 28 mm   200 mm of Heat Shrink Tube with Adhesive, 28 > min. 10 mm     € 4.95
Cable Strap 200 mm UV, 10 x   10 x Cable Strap 200 x 4.8 mm, UV Resistant     € 1.20
Cable Strap 360 mm UV, 10 x   10 x Cable Strap 360 x 4.8 mm, UV Resistant     € 2.70
Grommet 1.25 mm, 10 x   10 x Chloroprene Grommet 1.25 - 2.0 mm     € 1.10
Grommet 1.75 mm, 10 x   10 x Chloroprene Grommet 1.75 - 3.5 mm     € 1.20
Grommet 2.5 mm, 10 x   10 x Chloroprene Grommet 2.5 - 5.5     € 2.20



Prices incl. legal VAT. plus shipping costs
