Plastic Parts



Selected Plastic Parts for building Antennas

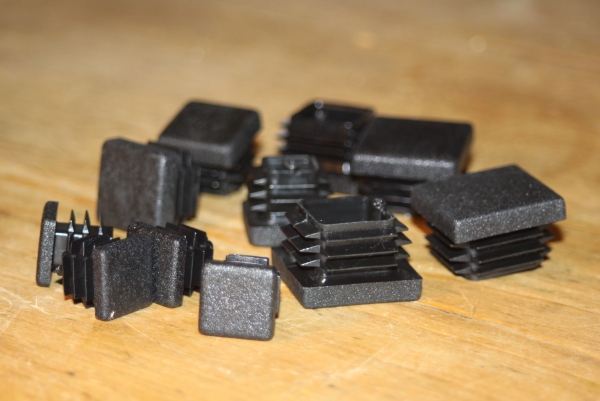

End Caps

Metric End Caps
Imperial End Caps






• Metric End Caps

Art. #   Description     Stock   Price
End Cap 15 x 15   Lamellar plug for 15 x 15 mm square tubes
PE black
    € 0.20


End Cap 20 x 20   Lamellar plug for 20 x 20 mm square tubes
PE black
    € 0.25


End Cap 25 x 25   Lamellar plug for 25 x 25 mm square tubes
PE black
    € 0.30


• Imperial End Caps

Art. #   Description     Stock   Price
End Cap 1 x 1   Lamellar plug for 1 x 1 inch square tubes
PE black
    € 0.35


Prices incl. 19% VAT. plus shipping costs



• Hydraulic Tube Clamps

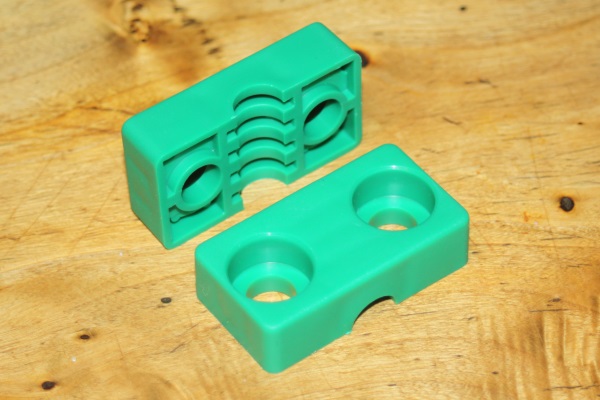

Hydraulic Clamp 12-10
• clamps 12 mm tube
• to be fastened with 10 mm bolts or screws
• dim: 54 x 29 x (2 x 15) mm, distance between bolt holes 33 mm

Note: this is a flat version of what most know as element holders, with large holes for fastening,
I use them for mounting VHF dipoles on a base plate. I would not recommend these for elements.

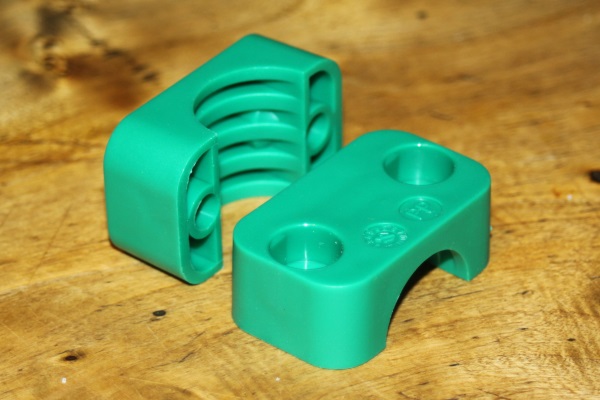

Hydraulic Clamp 25-6
• clamps 25 mm tube
• to be fastened with 6 mm bolts or screws
• dim: 48 x 28 x (2 x 17.5) mm, distance between bolt holes 33 mm

Note: Fits for example 25 mm round Yagi booms to fasten alternative dipoles on.

Art. #   Description     Stock   Price
Hdr. Clamp 12-10 PPgn   Hydraulic clamp, 12 mm tubes, 10 mm bolts
PP green
    € 1.90
Hdr. Clamp 25-6 PPgn   Hydraulic clamp, 25 mm tubes, 6 mm bolts
PP green
    € 2.30


Prices incl. 19% VAT. plus shipping costs
