Surplus Parts

Ferrite Cores
Cooling Bars & Fans
Industrial CF Memory Cards
19″ Front Plate
Current Transducers




• Ferrite Cores

A variety of 'High Flux' Cores, Material: FeNiCu


'High Flux' Core Size 1:
Outer diameter                    28.0 mm
Length                            13.0 mm
Inner diameter                    15.9 mm

'High Flux' Core Size 2:
Outer diameter                    28.0 mm
Length                            20.0 mm
Inner diameter                    15.9 mm

'High Flux' Core Size 3:
Outer diameter                    34.7 mm
Length                            12.8 mm
Inner diameter                    20.6 mm

'High Flux' Core Size 4:
Outer diameter                    58.5 mm
Length                            12.6 mm
Inner diameter                    34.0 mm


Ferrite Material FeNiCu is not a best specification for use on VHF / UHF as Materials 43 or 61 from NiZn show higher Impedance per size ... but it is sufficient even for demanding applications:

A single size 1 High Flux Core was used by the V31EME DXpedition on a 432 MHz 25 elem. Yagi lasting 3 moon paths with 0.9 kW in WSJT enabling even a CW EME QSO with this single Yagi.


Size 1 and 2 cores fit nicely on Cellflex LCF 12-50
(15.8 mm coax to 15.9 mm core inner diameter)

Size 1 and 2 on H2010 (10.3 mm coax)



These are surplus cores with material analysis but no other then the above
specification available. Plus plotted S11 Reflection in dB see here



Art. #   Description     Stock   Price
HF Core Size 1   High Flux Ferrite Core, 28.0 x 13.0 mm, bore 15.9 mm, used     € 1,90
HF Core Size 2   High Flux Ferrite Core, 28.0 x 20.0 mm, bore 15.9 mm, used     € 2,30
HF Core Size 3   High Flux Ferrite Core, 34.7 x 12.8 mm, bore 20.6 mm, used     € 2,50
HF Core Size 4   High Flux Ferrite Core, 58.5 x 12.6 mm, bore 34.0 mm, used     € 3,00


Prices incl. VAT. plus shipping costs




• Cooling Bars & Fans


I occasionally get a 700 x 290 mm size heavy cooling bar into my shop.
Which I cut into 3 slices and offer them here.

QRO cooling bars

Used heavy quality cooling bars with are suitable for
QRO SSPA pallets on copper base layer (sandwich) up to > heat 1 kw dissipation with fans

• Size 290 x 232 +/- 4 mm x 92 mm
• Solid plate thickness 17 mm
• Weight approx. 9 kg or almost 20 lbs
• Plate surface fine milled and plane

Holes in surface are M5, outer fastening is M6.

A typical cut, grinded along but not fully, cuts will vary per individual bar.
Mid pieces have 2 cutted sides. These are used and cut to slices cooling bars.
I wish to make this tranparent an clear. I can mail photos on request so
you see what you get.


QRO SSPA Cooling Bundle offer: 1 cooling bar plus 4 Ebmpabst fans


Fans

Ebm Pabst, 12 VDC, 133 mA 1.6 watts, 60 x 60 x 25.5 mm, used



Art. #   Description     Stock   Price
QRO cooling bar   QRO cooling bar, 9 kg, 290 x 232 x 91 mm, milled contact surface, used, rough cut sides     € 49,00
QRO cooling bar bundle   QRO cooling bar, 9 kg, 290 x 232 x 91 mm, milled contact surface, used, rough cut sides plus 4 fans Ebmpabst 12V, 133 mA, used     € 58,00
Fan EBM 12V 60x60   Fan, Ebmpabst, 12 VDC, 133 mA, 1.6 w, 60 x 60 x 25.5 mm, used     € 3.40


Prices incl. VAT. plus shipping costs





• Industrial Grade Compact Flash Memory Cards

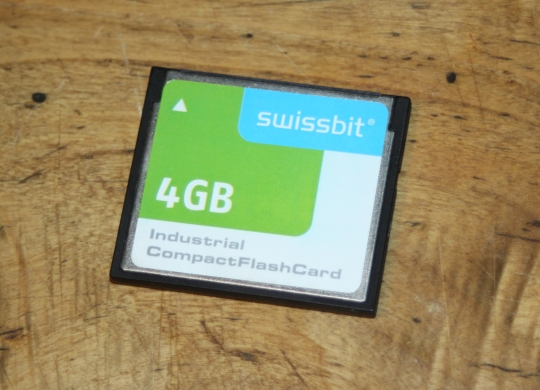

Swissbit 4 GB CF. Manufactured 2015, Made in Germany.
NAND Flash Technology, MTBF > 3,000,000 hours



Art. #   Description     Stock   Price
Ind. CF 4GB Swiss   Swissbit Industrial CF Card, 4GB, used     € 12,50


Prices incl. VAT. plus shipping costs





• 19″ Rack Front Plate

Original Schroff 3HE x 84TE full front plate, New Old Stock
128.4 x 426.4 x 2.5 mm Schroff No. EMC 3U 84HP

  Rear with 3 x 1 mm strip


Note: as much as I like to sell these ... because of their size shipping is relatively expensive per piece

Art. #   Description     Stock   Price
19″ 3HE 84TE   19″ Schroff 3HE 84TE, NOS     € 6,50


Prices incl. VAT. plus shipping costs





• Current Transducer LEM HAT 1000-S

Hall effect sensor tranducer for electronical measurements of DC, AC or pulsed currents with galvanical separation to the primary circuit. Used part in good condition.


HAT 1000-S
Primary nominal rms current       1000 A
Primary Current measuring range   +/- 2500 A
Current form                      DC, AC, pulse up to 25 kHz

Supply voltage                    +15 V & -15 V
at                                +15 mA & -15 mA
Output voltage                    +/- 4 V for nominal current span
Accuracy                          ≥ +/- 1 % of nominal current
Built to Standards                EN 50178: 1997, UL 508: 2010

Feed through opening              40 x 30 mm
Overall size                      90 x 65 x 42 mm
Fastening holes                   distance 78 mm, diam. 4.3 mm


For the data sheet and wiring of the LEM HAT 1000-S see here



Art. #   Description     Stock   Price
U LEM HAT 1000-S   Current Transducer LEM HAT 1000-S,
good condition, incl. cable with 2 plugs, used
    € 24,00


Prices incl. VAT. plus shipping costs
